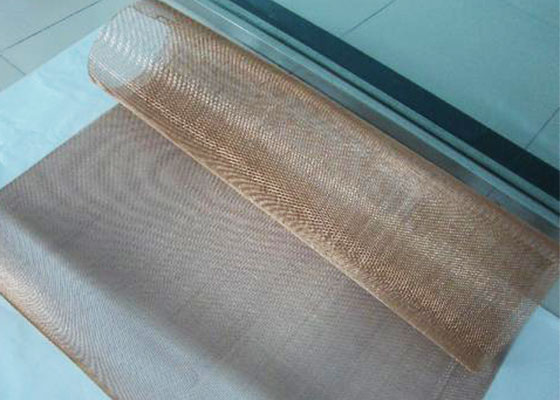

Copper Wire Mesh

Material: Brass wire, red copper wire, phosphor bronze wire, tinned copper wire
Mesh counts:
Brass wire mesh:2-250mesh
Red copper wire mesh:2-200mesh
Phosphor bronze wire mesh:2-350mesh
Tinned copper wire mesh:2-100mesh
Woven type: Plain weave or twill weave

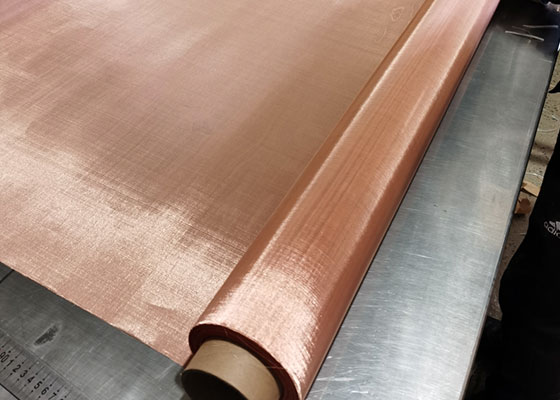

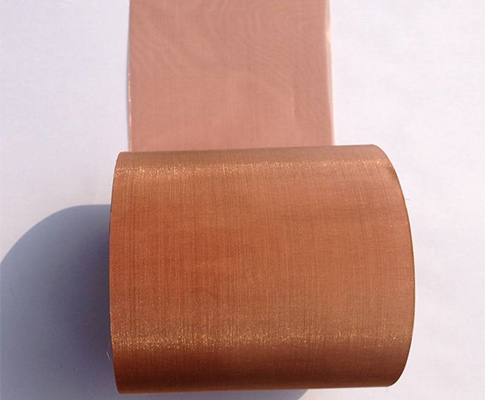

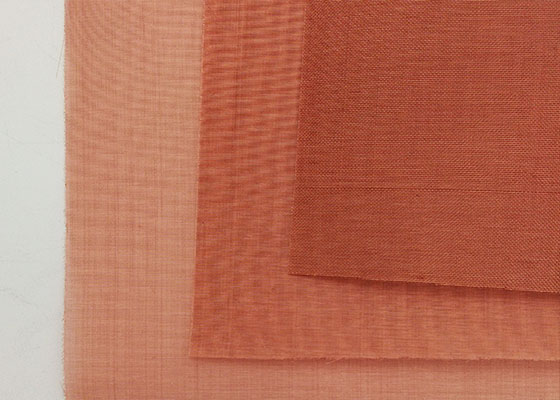

Red Copper Wire Mesh

Chemical Composition

Cu O As Sn Zn Pb P Fe Sb Bi
≥99.95% ≤0.002% ≤0.002% ≤0.002% ≤0.005% ≤0.005% ≤0.002% ≤0.004% ≤0.002% ≤0.002%


Nonmagnetic, good ductility, wear resistance, fast heat transfer, good electrical conductivity, sound insulation, electron beam filtration.

Can be used as the shielding screen in the cable circuits, laboratories and computer rooms.
Widely used in the power sector, aerospace, information industry and military for RFI and EMI shielding.
Can be used as the faraday cage.
Can be installed onto buildings to insulate noise.
Can be made to filter discs for liquid, gas and solid filtering.

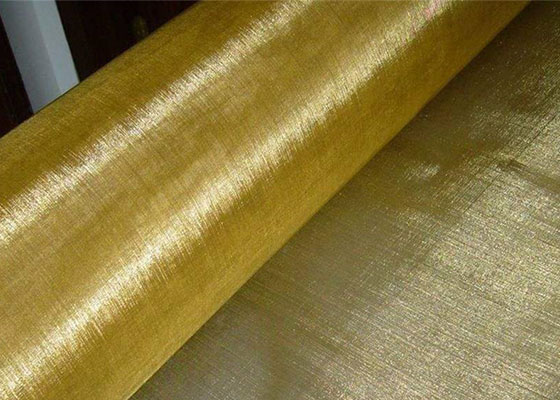

Brass Wire Mesh

Content: 65% Cu.35% Zn
Features: nonmagnetic, wear resistance, good ductility, good tension stress, bright color, smooth surface.
Screening all kinds of particles, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas. For newsprint paper, printing paper, use 60-70 mesh brass wire mesh, For typing paper, use 90-100 mesh brass mesh.
Phosphor Bronze Wire Mesh
Cu Purity:Phosphor Bronze Wire Cu85%-90%
Features: Nonmagnetic, wear-resisting, acid and alkali resistant, good ductility
Application: Screening of all kinds of particles, powder, porcelain clay, glass, chinaware printing, filtering liquid and gas,paper making etc.
