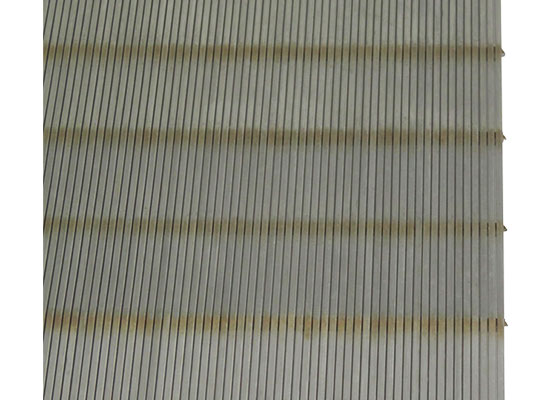

Wedge Wire Screen

1.Other Names: v shape wire screen, wire wrapped screen etc
2.Material: 304, 316, 316L, 2205, 2507, Titanium, Hastelloy etc

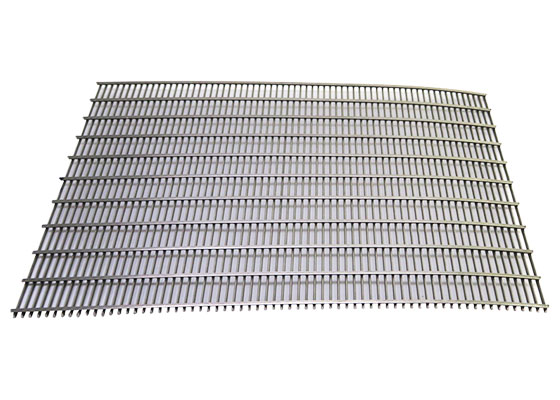

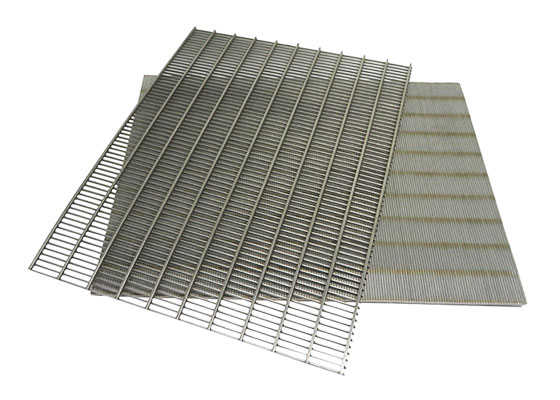

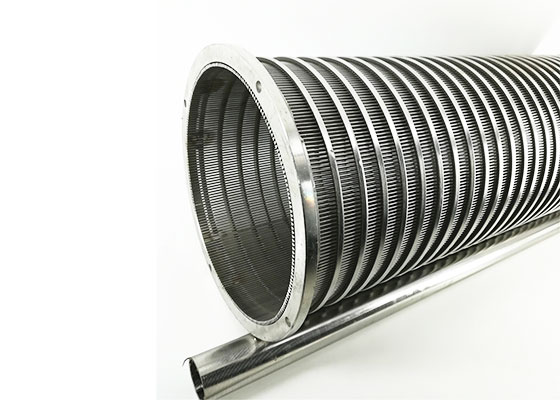

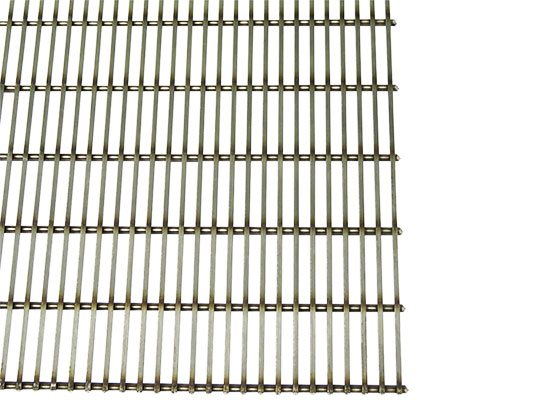

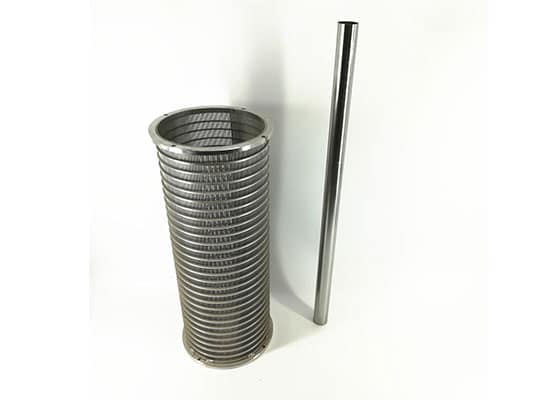

3.Type: Screen tube and screen plate
4.Minimum micron size: 25um
5.Delivery time: about 15 working days after the advance payment

Categories:

Description
Wedge Wire Screen also called Johnson Screens ,Slot Tube, It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

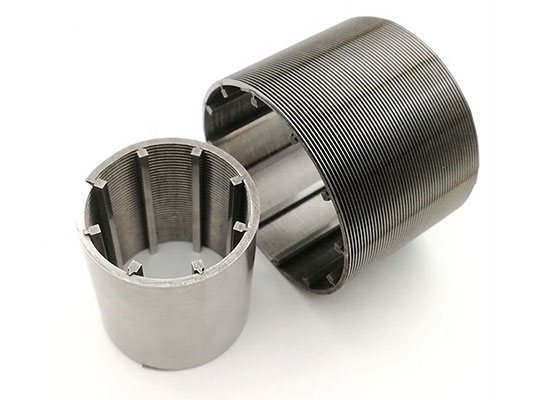

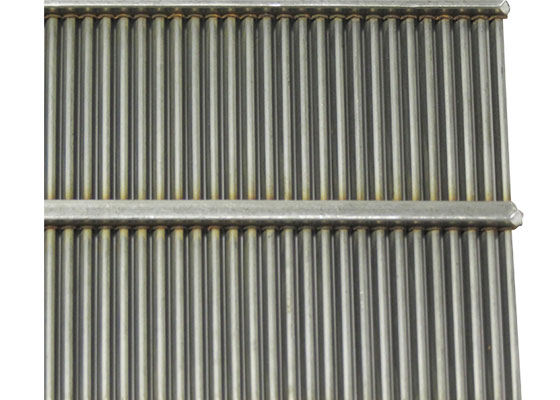

The Johnson Screens is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Features:
High strength and high hardness,
Wear and corrosion resistant
Uniform gap and good seepage
Easy to clean and backwash

Usage:
Wedge wire screen are widely used in the screening of petroleum, chemical, pharmaceutical, food and beverage, metallurgy, coal and other industries, filtration of water treatment. It is a kind of self-cleaning equipment filter element, which is widely used in environmental protection industry.

Wedge Wire Screen Advantage
No blocking
Chemical and thermal resistant
Long using life
Maximum process output
Low maintenance cost
